5.1. Whitebox: Common Service

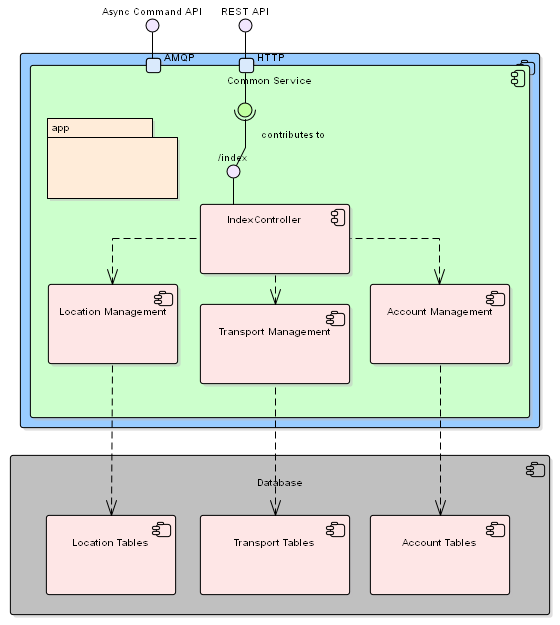

The white box view gives a rough overview on how the Common Service is built internally. The service basically consists of two major functional components, one to manage Locations and LocationGroups and another one to manage TransportUnits.
Contained Building Blocks
| Component | Responsibility |
|---|---|
| app | A package that contains lifecycle components of the Common Service, without any business value |
| Index Controller | This service provides an HATEOAS REST API with index resources to navigate across the primary resources |
| Location Management | Functional building block to manage Locations and LocationGroups
|
| Transport Management | Functional building block to manage TransportUnits and TransportUnitTypes
|
| Location Tables | A set of database tables belong and accessed by the Location Management |
| Transport Tables | A set of database tables belong and accessed by the Transport Management |
Important Interfaces
| Interface | Description |
|---|---|
| REST API | The public REST API is comprised of the Location Management API, the Transport Management API and an Index that lists and delegated to those two |
| Async Command API | The asynchronous Command API is exposed to trigger actions on the Location- and Transport Management resources |
5.1.1. Component: Location Management

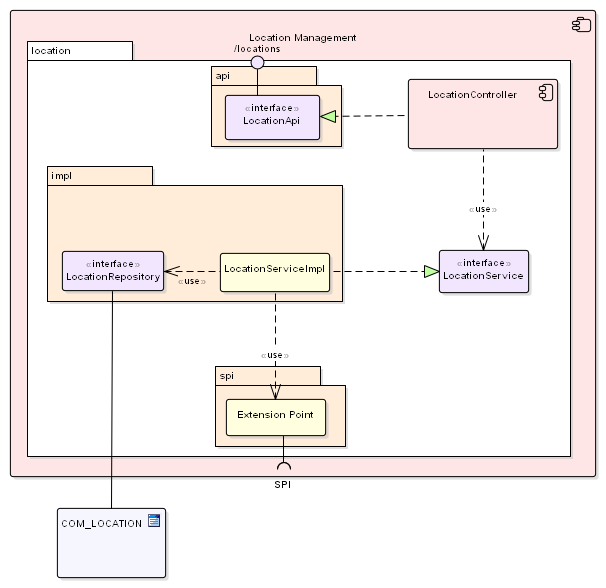

As mentioned the Location Management cares about the resources Location, LocationGroup and Target. The software design of all three primary resources is almost the same, hence the management of Location resources is shown here by example for the others.
All types are located in the Java package .location with several sub-packages.
| Component | Type | Responsibility |
| api | Package | Contains all types that are exposed and also exported to service clients |
| impl | Package | Contains all types that are private and implement the solution |
| spi | Package | Contains interfaces and classes that can be used to extend the service implementation |
| LocationApi | Class | An exposed class that defines the Location API and that can be used directly ba Java clients |
| LocationController | Class | Is a Spring RestController implementation of the LocationApi and resides in the main package |
| LocationService | Interface | Used by the LocationController within the same package to avoid package dependencies (An interface is always public) |
| LocationServiceImpl | Class | Spring managed transactional service that is the implementation of the business logic and the transaction boundary. In a internal package and kept package-private |
| LocationRepository | Interface/Class | Either a Spring Data JPA implementation or some other technology that acts as a DAO and accesses the persistency layer in order to save and fetch Locations
|
| COM_LOCATION | Database Table | The database table accessed by the repository, either mapped or directly accessed |
| Extension Point | <abstract> | This could be some interface that is used by the business logic to break out the standard processes and allow some kind of extensions |
5.1.2. Component: Transport Management
tbd
5.1.3. Component: Account Management
tbd
