Communication between microservices is essential. Likewise the communication format, the protocol, is essential and absolutely required to use a well-defined structure that both communication partners, provider and consumer, understand.

Three kind of communication formats must be considered.

Information Data

The actual transferred business payload between two services is the common case of microservice communication. The service provider is in the role of upstream service and feeds all consuming services (aka. downstream services). Hence the provider narrows the protocol and data structures that are possible for the communication. But the consumer may choose between options, like different representation formats (JSON, XML, vendor specific, etc.) or transport protocols.

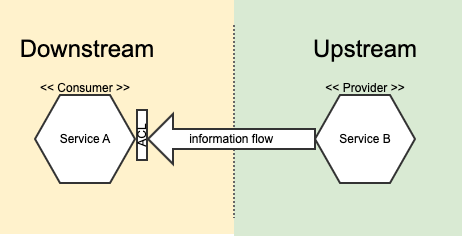

Figure 11. Information Flow

The consumer is responsible to transform the received structures into it’s own internal used data structures. This often happens in a so-called ACL (Anti Corruption layer).

Context Data

Beside the actual business payload context relevant information must be transmitted as part of each microservice communication. For example this is relevant to trace calls within a call chain and particular to support operationability and monitoring of a distributed system.

This contextual data is not specific to each microservice, like information data is, but has to follow a common structure that is applied in every microservice implementation. Each microservice acts as consumer and additional as producer, respectively enricher, of context data. Finally the transferred information must be sufficient to feed external monitoring systems with.

Context data of OpenWMS microservices is transferred in headers, either HTTP headers or RabbitMQ headers.

For example: When OpenWMS.org microservices are deployed in a multi-tenant environment the tenant identifier is required with each call. This information is typical context data that needs to be transferred between client and server. For a HTTP call the tenant identifier is propagated as custom HTTP header X-Tenant and for asynchronous AQMP messages the AMQP header osip_tenant transfers this information.

Failure Data

In failure situations a microservice might not respond with self-defined information data structure but with failure or error responses. The structure and the protocol of these error responses must be consist across all microservices in order to establish communication even in case of errors. As an example: It is not an option that Service A returns an error response to Service B that cannot be processed by Service B because the protocol or format is unknown to Service B.

With OpenWMS we use Spring Boot as implementation framework. Spring Boot already comes with it’s own format like it exposes errors to API consumers. For REST API over HTTP a typical Spring Boot error response looks like this:

{
    "timestamp": 1568208641323,
    "status": 500,
    "error": "Internal Server Error",
    "exception": "org.ameba.oauth2.InvalidTokenException",
    "message": "JWT expired at 2019-09-11T13:30:41Z. Current time: 2019-09-11T13:43:27Z",
    "path": "/transport-units/S000005270119225"
}

This works well with Spring Boot consumers on the client side. Even clients in JavaScript can deal with this format. The problem here is, that the format is baked into and driven by Spring Boot and may change between mayor framework releases.

Therefor a RFC was initiated, the Problem Details for HTTP APIs (RFC7807). By applying this RFC to all OpenWMS microservice implementations we ensure that we align to a standardized but flexible and extendable format.

{
    "type": "https://api.openwms.dev/meta/v1/error/AlreadyExistsException",
    "title": "AlreadyExistsException",
    "status": 500,
    "detail": "The TransportUnit with Barcode [S000005270119225] already exists and cannot be created",
    "messageKey": "E0033",
    "messageLanguage": "en-US",
    "messageCategory": "ERROR",
    "args": ["S000005270119225"],
    "call": {
        "headers": {
            "x-span-id": "2485ec27856c56f4",
            "x-trace-id": "1210be13194bfe5"
        },
        "uri": "https://api.openwms.dev/v1/transport-units/S000005270119225",
        "path": "/transport-units/S000005270119225",
        "method": "POST"
    }
    "timestamp": 1568208641323,
    "error": "Internal Server Error",
    "exception": "org.ameba.oauth2.InvalidTokenException",
    "message": "JWT expired at 2019-09-11T13:30:41Z. Current time: 2019-09-11T13:43:27Z"
}
